Mazda Miata NB2 2001-2005 MS3Pro PnP Plug and Play

Miata NB2 2001-2005 MS3Pro PnP Plug and Play Standalone Engine Management System

2001-2005 NB2 USDM Mazda Miata with manual transmission, *non-Mazdaspeed

This MS3Pro based Miata 2001-2005 MS3Pro PnP takes plug and play engine management to the next level!  Easy to use and install!

2001-2005 Miata (Part# MSPNPPro-MM0105) MS3Pro PnP Features:

• Fully Plug and Play Installation – No wiring required for basic functionality.
  • Average install time is under 1 hour!
• Base map is pre-loaded to help your engine start on the first turn of the key
• Real time tuning and data logging with a laptop connection
• 8 GB internal data logging with built in SD card
• Supports most aftermarket wideband sensors

Fully Tunable Engine Control!

• 16×16 Fuel Tables allow high resolution tuning
• 16×16 Ignition Tables
• Multiple Acceleration enrichment strategies
• Closed Loop Idle Speed Control
• Air Conditioner Control
• 4 sequential fuel injector channels with individual trim tables
• Onboard peak and hold drivers support both high and low impedance injectors – No external ballast resistor is needed!
• Allows removal of stock airflow meter

Mazda Miata 2001-2005 MS3Pro PnP Advanced Feature Set (Included!)

• 12×12 Air Fuel Ratio Target Tables for use with wide band O2 sensor for precise tuning and table trim.
• VVT support if swapping to a later VVT motor
• Programmable voltage regulator control for NB alternator swaps
• Multiple traction control strategies
• Built-in 3-step rev limiter / launch control with flat shift and burnout rev limiter
• Real time barometric correction
• Internal 4-bar MAP sensor reads up to 44PSI of boost
• Overboost protection
• Closed loop boost control (Requires EBC solenoid kit – stock boost control solenoid does not allow adjusting boost level)
• Rally style anti lag
• Water injection control – on/off or variable
• Knock sensor input with adjustable sensitivity, crank angle windowing, and more
• Table switching input. Change fuel and spark maps on the fly for different fuels, nitrous activation, etc.
• Input for flex fuel sensor – switch between E85 and gasoline on the fly!
• CANBus connector allows interconnection of other MegaSquirt-compatible devices for additional functions (EGT Input, Automatic Transmission Controller, Additional Sensors…..the possibilities are limitless!

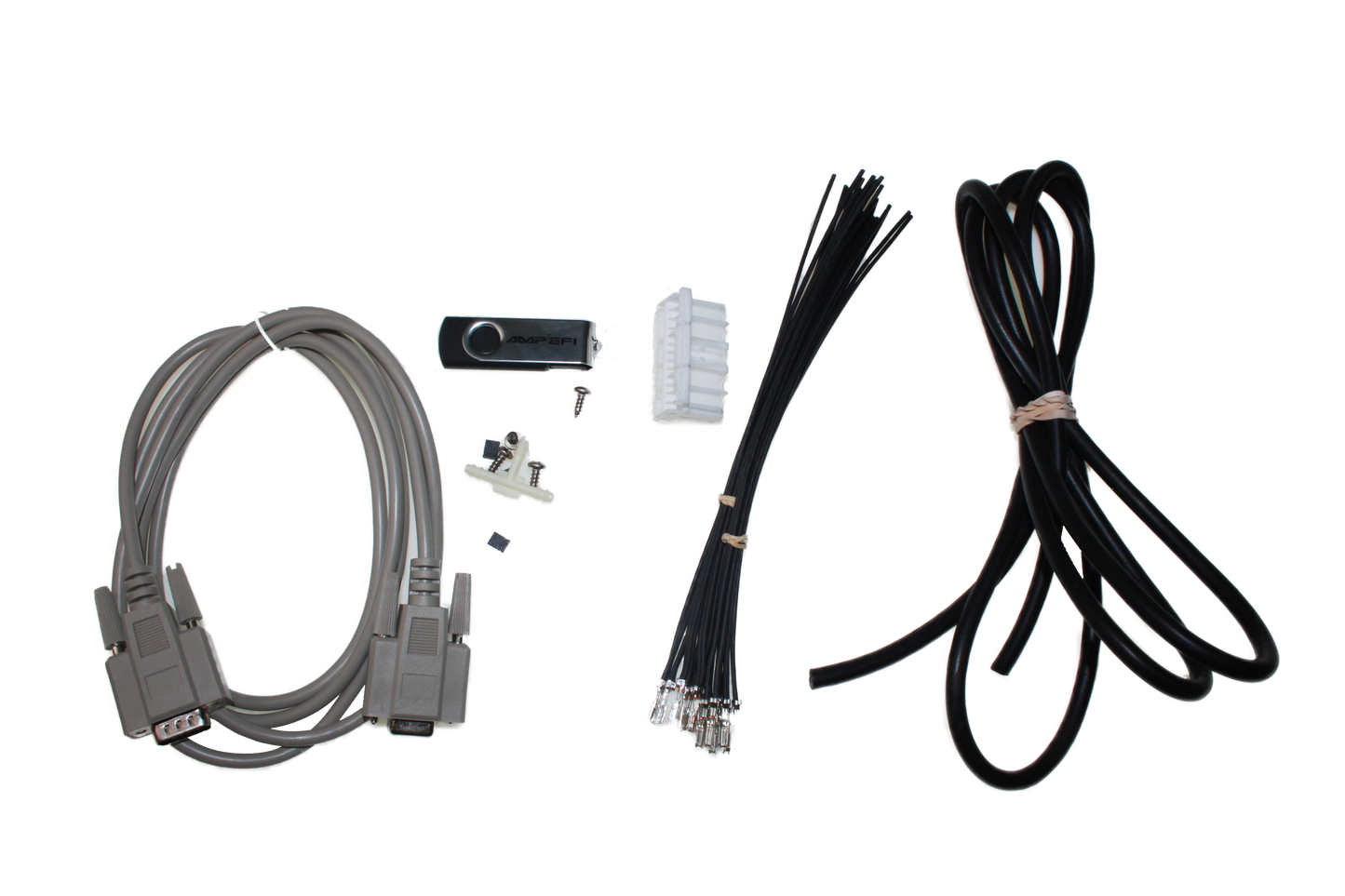

What you get in the box:

• Mazda Miata 2001-2005 MS3Pro PnP ECU
• MSPNP RS232 serial tuning cable, 6′ (USB adapter sold separately, if needed)
• Tuning Software and Documentation on USB memory stick
• 6′ Vacuum Hose for MAP Signal and ‘T’ fitting
• Four Screws for ECU mounting
• Registered version of TunerStudio and MegaLog viewer included
• Make sure to use our Custom TunerStudio Dashboard, designed specifically to help make tuning your new build intuitive and easy!
